The Alley Shown on an Old Plat May Not Match What Exists Today
Infill projects in older neighborhoods run into ghost alleys all the time. Land surveying work turns up a strip drawn on a plat from 1908 that nobody has driven on in seventy years, and a simple lot suddenly has a public right of way running through the middle of it. The alley on paper and the alley on the ground often have very little in common. Sorting out that gap shapes what can actually get built.
Finding the Original Source of the Alley
Every alley started somewhere, usually in a subdivision plat that gave the strip to the public. That document sets the width, the location and the terms, and it sometimes includes conditions that still matter today. A few corridors came from separate deeds or from city ordinances instead, which sends the research down a different path.
Historical sources fill in the rest. Old atlases, fire insurance maps, city engineering files and aerial photos from different decades show whether the alley was ever graded, paved or used at all. That record explains the difference between a corridor that fell out of use and one that never came into use in the first place.
Checking Whether It Was Vacated, Relocated, or Left Unopened
A city can vacate an alley, which ends the public interest and usually hands the ground back to the owners on either side. Vacations get recorded, though not always clearly, and older ones sometimes cover only part of a block. Finding the ordinance and reading exactly what it released can change the answer completely.
Corridors that nobody ever opened create a stranger situation. The dedication still stands, the public interest still exists on paper and the city keeps the right to open the alley someday, even though grass has covered it for a hundred years. An owner who builds across an unopened right of way is building on borrowed time.
Comparing Recorded Width With Current Occupation
What people occupy almost never matches the mapped width. Garages sit partly inside the strip, fences have crept outward across generations of owners, driveways cross it and neighbors treat pieces of it as yard. Utilities often run through it too, sometimes with their own easements and sometimes on the strength of the old dedication alone.

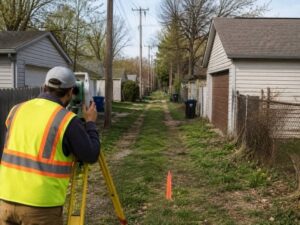

The survey measures what exists and plots it against the recorded corridor. That comparison shows which encroachments belong to the client, which belong to the neighbors and which ones eat into the buildable area. It also shows what would need to move if the corridor were ever vacated and built over.
Understanding What the Alley Means for an Infill Plan
Designers need to know early whether the strip counts as usable land. An open, dedicated alley may provide the rear access that makes a parking layout work, and losing that access would send the design back to the beginning. An unopened corridor might be vacated with the city’s cooperation, which changes the lot area, the setbacks and the number of units that fit.
Setbacks get measured from lines, and a right of way line is one of them. A building placed as though the alley were not there can end up breaking a rear setback that nobody knew applied. Getting the line plotted before the design advances saves a full redraw later.
Documenting the Findings for the Project Team
The drawing shows the corridor as recorded, the improvements as they stand today and the relationship between the two. Notes explain what the research turned up, including vacation records, dedication wording and any conflicts between the sources. Readers get the evidence itself rather than a conclusion dressed up as a fact.
That documentation travels well between offices. Title companies use it to weigh exceptions, attorneys use it when asking the city for a vacation, designers use it to place buildings and city staff use it during permit review. One clear drawing answers questions coming from four directions at once.
Frequently Asked Questions
Does an alley disappear if the city never built it?
No. An unopened dedication normally survives until the public interest gets formally released, which usually takes a vacation approved by the local governing body. Long stretches of disuse do not end it on their own, no matter how much the ground looks like part of somebody’s yard.
Who owns the ground under a vacated alley?
That depends on the vacation ordinance and on state law. The ground commonly goes back to the owners on either side, often split down the centerline, but the exact result belongs to a title attorney rather than a surveyor. The survey shows the geometry and lets the legal review answer the ownership question.
Can I build across an alley that shows on my survey?
Not without dealing with it first. Building over a live public right of way leaves the owner exposed to removal, and permit reviewers usually catch it before construction starts. Vacating the corridor, or designing around it, keeps the project out of trouble.
